ERA protects both upper and lover frontal hull plates. Massive ERA blocks also installed over frontal tracks area
|

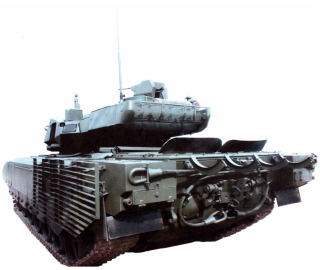

“Grill” armors protects engine compartment and rear hull
|
Shielding of the turret to reduce radar and IR visibility |
Active protection system "Afganit", derivative of "Drozd" APS ÊÀÇ "Àôãàíèò"
|
Gunner station in the center of "capsule"
|
View of the driver's seat, control by the steering wheel
|
View of the driver's seat, control by the steering wheel,
central part of capsule is occupied by gunner
|
View of the driver's seat, control by the steering wheel
|
The rear part of the crew "capsule" , air conditioning and ventilations systems are visible
|
